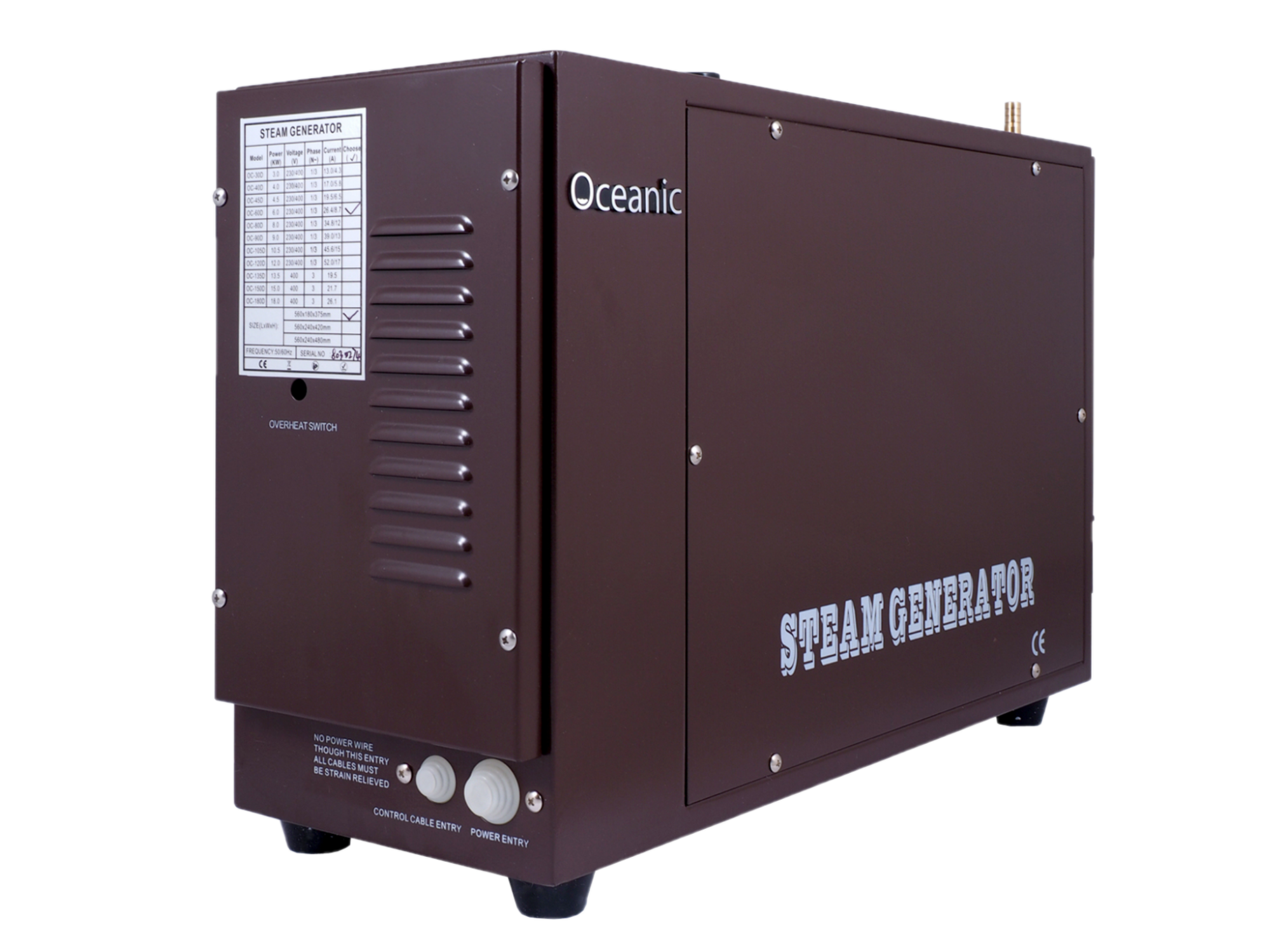

18kW Heavy Duty Commercial OCD Steam Generator

The OCD range of heavy duty steam generators is designed for trouble free continuous use for up to 16hours in commercial environment such as a spa, gym or hotel. The advanced control system allows scheduled programming to activate the generator at different times during the day for a fully automated operation. The descaling cycle can also be programmed to run at a set time during the week to ensure the tank is kept free from limescale buildup. The large bore drain valve has easy access cap for easy removal of any limescale deposits.

The LCD display has detailed diagnostics also allows lighting and fan to be switched via generator.

Our unique Steam On-Demand feature is perfect for users who want to save energy on a steam room that is not permanently occupied. 30 minutes of steam can be activated at a push of a button. The button can be located inside or outside the room.

3 years Warranty excluding the elements - Read our terms and conditions for more details.

Delivery of your order

To know the availability of this product and its delivery times, contact us.

Guarantee

All Oceanic products are guaranteed for 3 years in the event of a lack of conformity.
The warranty does not apply to "consumable" parts, such as elements, for example.
See Terms and conditions for more details.

If necessary, Oceanic Saunas agrees to keep a stock of all possible spare parts for this device.

Steam nozzle guard

To protect bathers from accidental scalding install our glass guard infront of the nozzle. Requires chrome inlet nozzle

Vent Kit

For good airflow within the steam room we recommend our passive vent kit with 4inch flexible duct

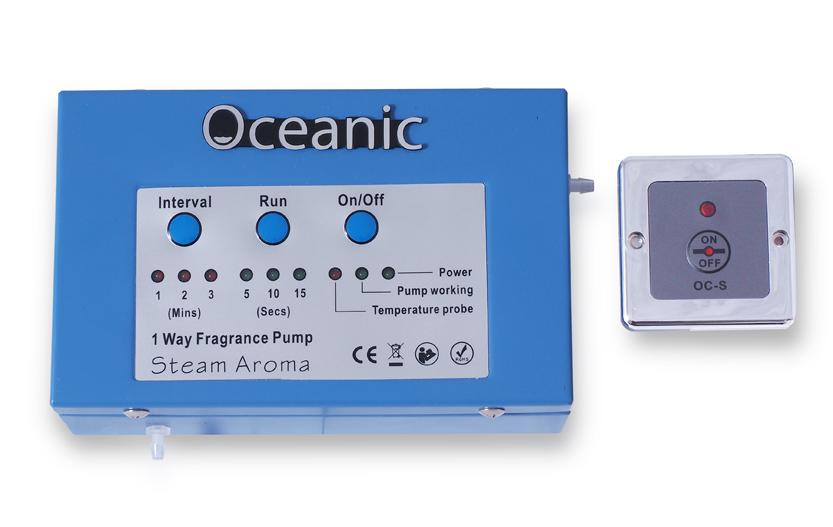

Aroma Pump

Waterproof Bluetooth Speakers

High quality, 60W per channel stereo speakers with bluetooth connection. Suitable for use up to 80^oC

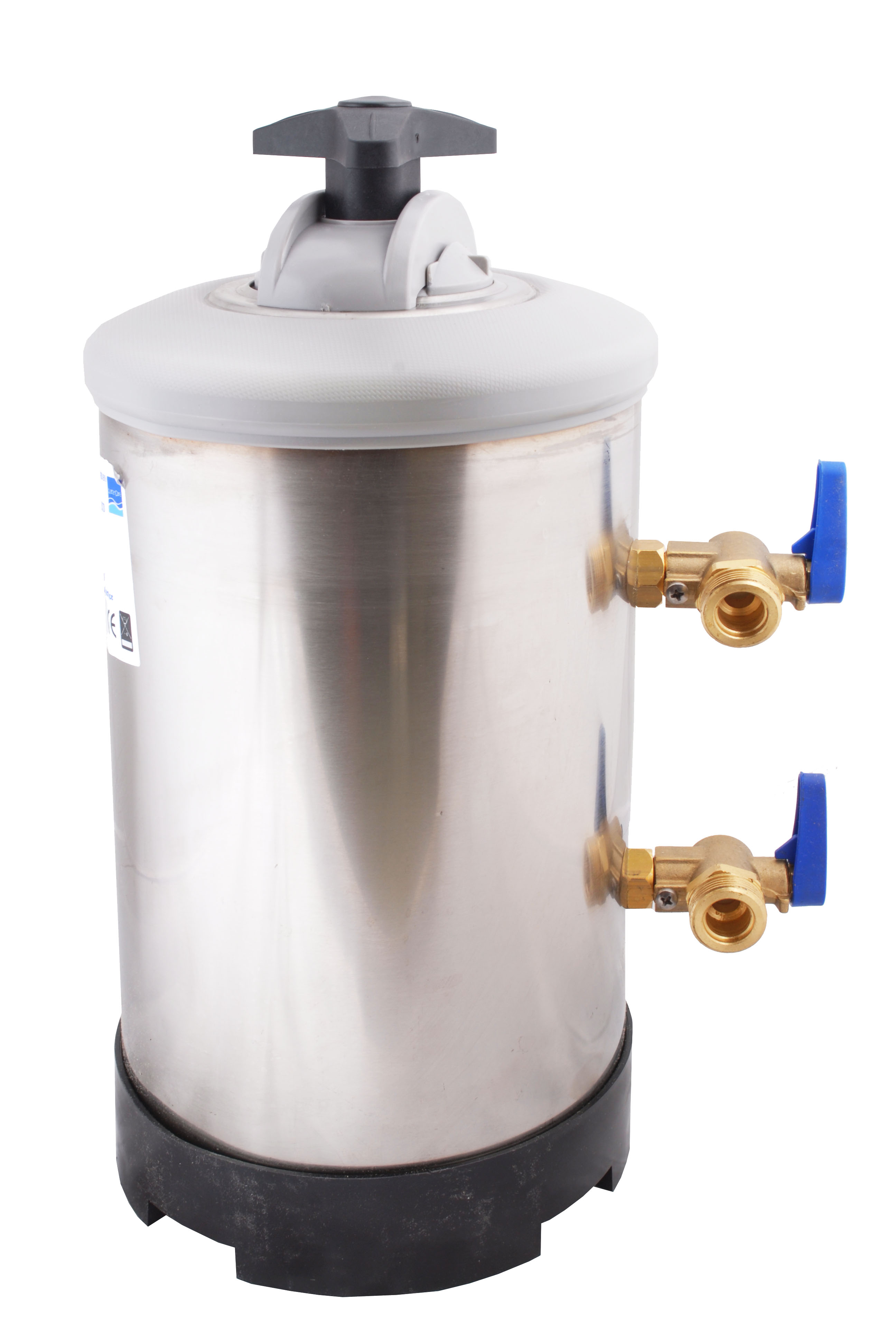

Water Softener

Essential for any commercial installation.

- Prolong the life of elements
- Trouble free operation.
- Less regular descaling, can reduce to once a year in some cases!
- Comes with a free test kit and chart to inform you of how often you need to regenerate with salt.

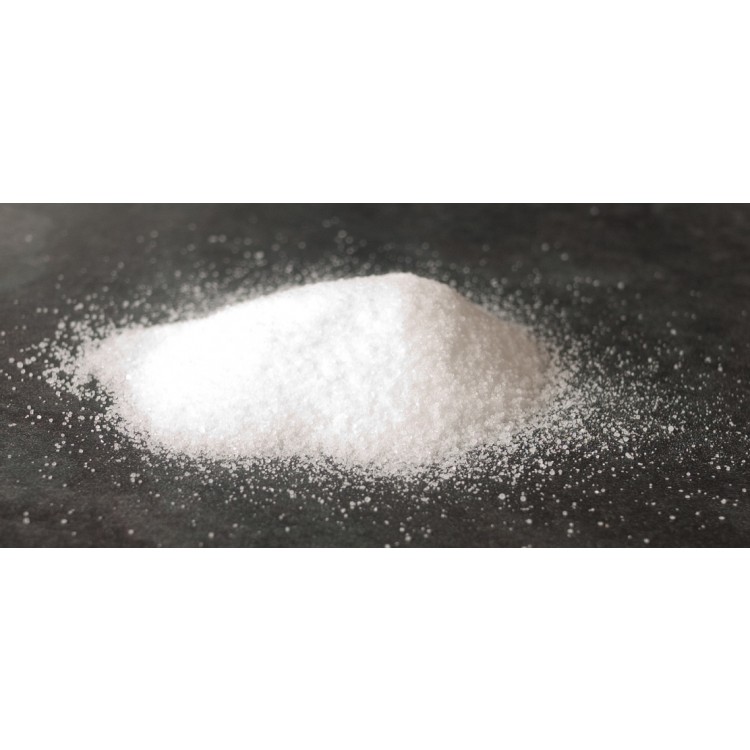

Salt for Water Softener

25kgs of salt to regenerate the water softener

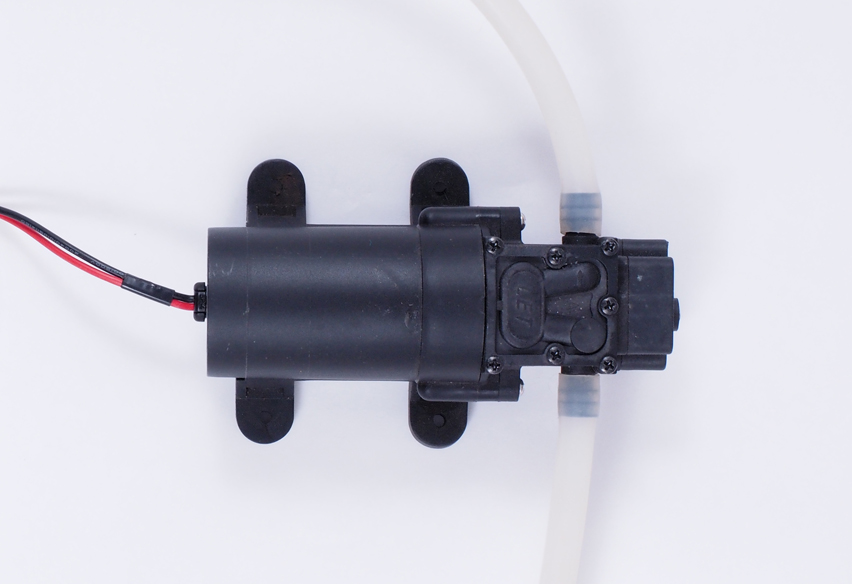

Auto Descale

To ensure long life of a commercial steam generator running continously throughout the day the auto descale feature is essential.

From the keypad you can choose which day and time you want the descaling cycle to take place (for example sunday 00:00 - 7:00). The generator is supplied with a pump which pumps from a large container of premixed citric acid on the plant room floor. The generator will heat the acid so the reaction speeds up, it will drain down at the end of the cycle, you can choose how long you want the descale cycle to last but we advise no shorter than 4 hours. The generator will descale itself on the same day and time every week unless this option is turned off.

120litre and 25 litre containers are available from our webstie to store the liquid descaling solution.

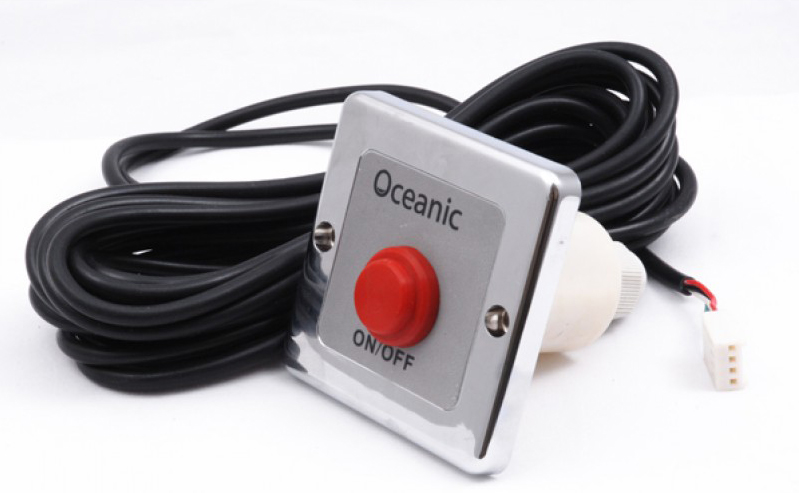

Instant Steam On-Demand

30 minutes of steam at the push of a button, reduces running costs and extends life of the generator.

For commercial operaters where the steam room is left empty for many hours through the day. Install a button outside of the steam room that users press when they want to use the room, each push of the button will give 30 minutes of steam. The generator holds the water in the tank at 85oC so that when the button is pushed the generator will steam instantly.

Note - the user will have to wait for the room to heat up but in most cases this is not a problem, the use of bench heating is a solution to this.

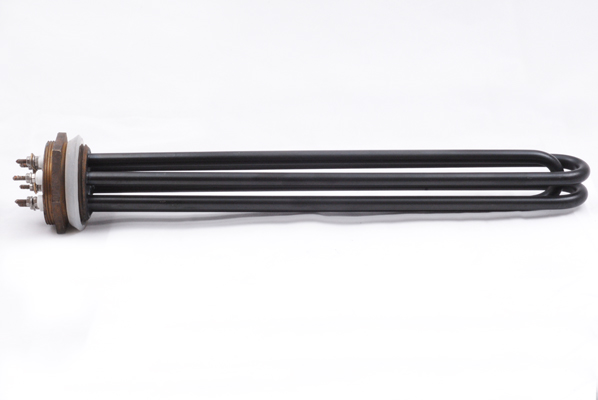

Teflon Coated Incalloy Elements

Oceanic Steam generators are fitted with powerful long life elements specially coated to help resist build up of limescale. Heating elements are easy to replace and can be bought individually or in discounted sets via the website.

Sequential Heating

From cold both elements operate for rapid heating, when the room temperature is almost reached some of the elements are turned off and the required temperature is achieved by alternating power to the remaining elements to gently maintain the temperature without large fluctuations improving user comfort.

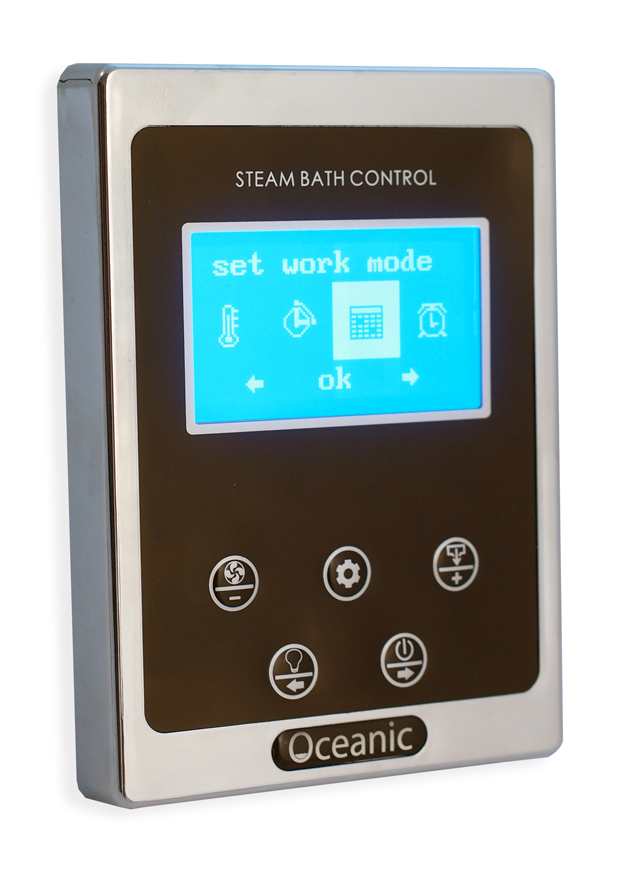

LCD Control Panel - Fully Automated Control

The OCD generator is supplied with a programmable LCD display with detailed diagnostics. Program your steam generator to automatically turn on and off multiple times during the day.

Auto Drain and Flushing

All generators feature an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the generator will stop for a few minutes to allow the water to cool a little then the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining.

Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.

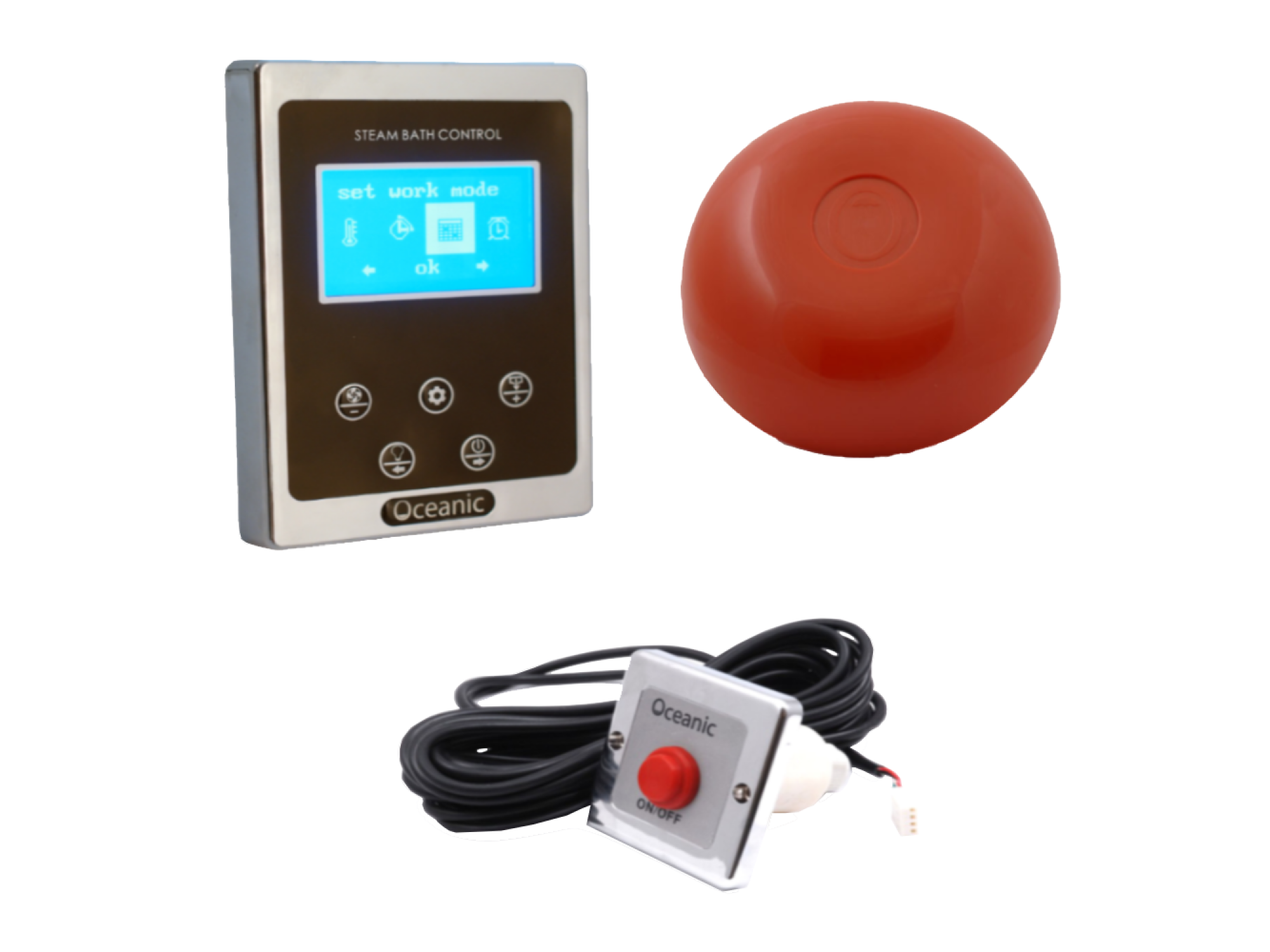

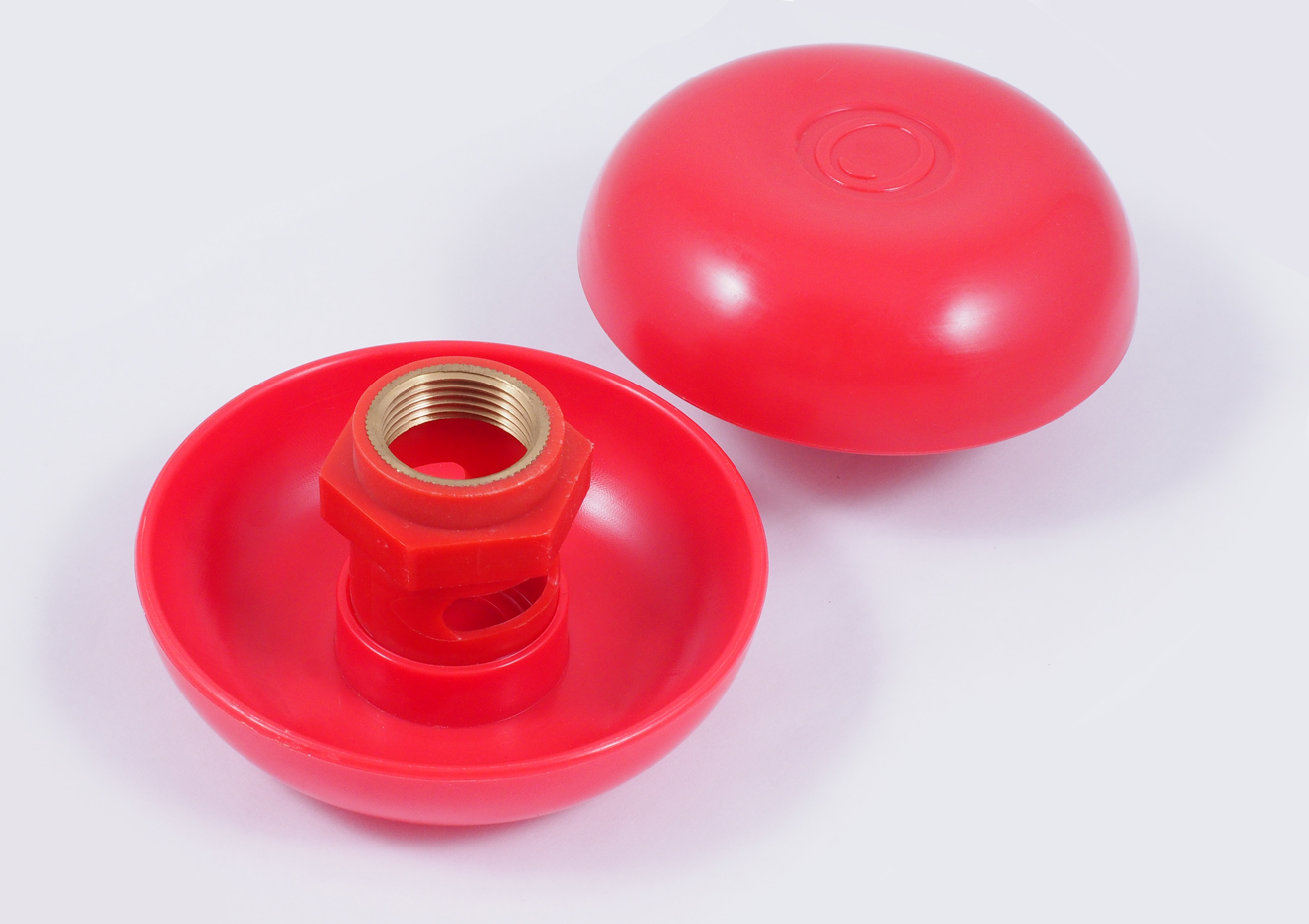

Twin Steam Nozzle

OCD generators have two steam outlets and are supplied with high visibility nozzles for use in commercial environment.

Large Bore Drain Valve

We have increased the size of the drain valve and given it an easy access cap to allow easy cleaning of any limescale deposits.

Safety Features

Thermal overload cut out, boil dry protection and pressure relief valve are all included on every steam generator
